储能系统
从住宅到商用储能系统,安费诺为储能系统提供了各种互连解决方案。
- 大功率密度,小型化封装
- 无障碍设计,便于现场安装
- 在极端恶劣条件下提供高可靠性
关闭
感谢您提交您的产品查询。
请电邮至 marketing.operations@amphenol-icc. com 如果您需要进一步的资料

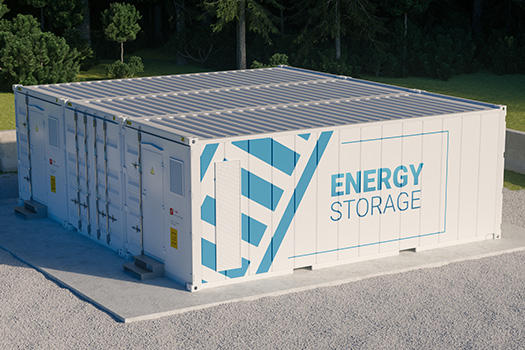

储能系统(ESS)用于在大型电网装置、中型商用设备和住宅设施中存储能源并保持稳定的电气性能。锂离子电池是ESS的基本组成部门,与逆变器或功率调节系统(PCS)共同帮助ESS管理区域或家中的高峰及非高峰电力需求。智能家居中的住宅ESS配备壁挂式电池或模块,并与AC/DC逆变器耦合。对于商用或工业应用,可将多个ESS模块堆叠在一起构成机架,并将多个机架组装在容器内以作为大型智能电网的商用ESS。ESS可以捕获太阳能和风能等可再生能源产生的多余电力,可避免大幅频率波动,从而提高电网可靠性和电能质量。安费诺为ESS提供了一系列大功率连接器和许多先进互连产品。

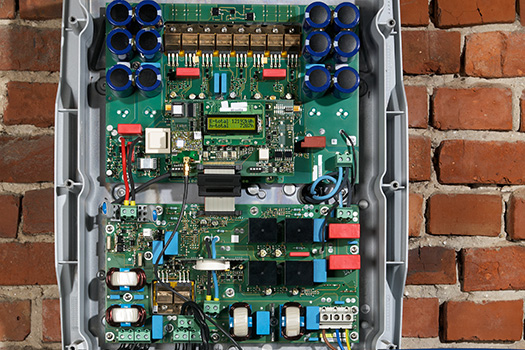

AC/DC逆变器
AC/DC逆变器或功率调节系统(PCS)与电池单元协同运行,共同保障能源存储系统的平稳运行。
安费诺提供增强型电源连接器和电缆解决方案以及许多其他高性能互连产品,可为这些系统提供支持。
安费诺提供增强型电源连接器和电缆解决方案以及许多其他高性能互连产品,可为这些系统提供支持。

特色产品
-
Dubox® 2.54mm Crimp to WireThe Dubox®, connector families offer an extensive range of through-hole and surface-mount part options, including single or double-row in either straight or right angle orientation from 2 to 50 positions, with a current rating of 3A (maximum) per individual contact.
-
Quickie® IDC Cable-to-BoardFCI Basics Quickie® is a complete solution for flat cable-to-board connections using 2.54mm pitch IDC technology. The highly durable and cost-saving connectors come with specialized features in polarization, plating, and structure. Headers are low profile and come in shrouded versions with or without eject latches. Receptacles have strain relief covers for precise alignment.
-
PwrBlade+®The PwrBlade+® connector is a next generation AC/DC power distribution connector system for demanding applications requiring higher linear current density and low power loss.
-
CoolPower® Slim DrawerAmphenol''s CoolPower® Slim Drawer Series is configurable to accommodate various combinations of power and signal contacts and a number of mounting and termination options.
-
BarKlip® BK300The BarKlip® BK300 connector features 14 independent conducting beams that maintain contact with the mating busbar.
-
Minitek MicroSpaceXS™ Waterproof 1.27mm Crimp-to-WireMinitek MicroSpaceXS™ Waterproof Crimp-to-Wire connector platform's unique design is compatible to LV214 Severity-3 and USCAR-T2V2 specifications.
-
ComboLock® Wire-to-BoardComboLock® is a compact, hybrid wire-to-board connector system that saves space, allows for simpler assembly and simpler cable management.
-
Rugged USB 3.0Amphenol's Product Line of Rugged USB3.0 connectors serve many markets and applications cross the globe including Medical, Industrial, Telecommunication, DataComm, etc.
-
Modular Jack - RuggedRuggedized RJ connectors with die cast housings and IP67 sealing for Harsh Environment applications, provide reliable performance in extreme conditions for the most demanding applications, and mate with standard RJ plugs.
-
BergStik® 2.54mmBergStik® FCI Basics 2.54mm unshrouded headers are available in surface-mount (SMT), through-hole (THT), press-fit, stacking and pin-in-paste (PIP) versions. Designed in single and double row, they are available in straight or right angle options, from 2 to 72 positions.
电池储能系统
安费诺提供紧凑、灵活的高性能连接器,可为ESS内的电池储能系统提供支持。

特色产品
-
ComboStak® and PowerStak® Board-to-BoardComboStak® and PowerStak® are compact, hybrid (signal and power) and power board-to-board connectors. ComboStak® combines existing, BergStak® 0.8mm pitch signal pins with 2.00mm pitch power blades.
-
0.50mm Power Pin Floating Board-to-BoardPower pin 0.50mm pitch floating board-to-board connector system is designed for applications that need large current and space saving.
-
Minitek® Pwr 5.7 Connector SystemMinitek® Pwr 5.70mm is a flexible and comprehensive solution for power application with high current rating up to 23A per contact and wire gauge range from 16 - 12AWG for wire-to-board application.
-
PwrBlade+®The PwrBlade+® connector is a next generation AC/DC power distribution connector system for demanding applications requiring higher linear current density and low power loss.
-
BarKlip® BK300The BarKlip® BK300 connector features 14 independent conducting beams that maintain contact with the mating busbar.
-
OCTIS™ - Power Connectors and Cable AssembliesFCI Basics OCTIS™ I/O connectors and cable assemblies using Amphenol's PwrProfile® interface promote high power transmission in outdoor and harsh environments like Remote Radio Units and small/macro cells.
电池管理系统
电池储能是储能系统(ESS)的关键组件,通常配备电池管理系统(BMS)。从中等功率的线对板连接器到板对板和卡缘连接器,安费诺提供了一系列紧凑、可靠的解决方案,可为ESS内的BMS运行提供支持。
特色产品
-
Minitek MicroSpaceXS™ Waterproof 1.27mm Crimp-to-WireMinitek MicroSpaceXS™ Waterproof Crimp-to-Wire connector platform's unique design is compatible to LV214 Severity-3 and USCAR-T2V2 specifications.
-
Minitek MicroSpace™ 1.27mm Crimp-to-WireFCI Basics Minitek MicroSpace™ Crimp-to-Wire connector platform's unique design enables LV214 Severity-2 and performs at 1.8, 1.5 and 1.27mm pitch. Minitek MicroSpace™ will be available in single and double row versions, with top and side latch configuration.
-
WireLock®WireLock® is a 1.80mm pitch wire-to-board connector system. It's compact design addresses the growing need for space saving automotive-grade connectors.
-
FlexLock® 2.54mm FPC-to-BoardFlexLock®2.54mm FPC-to-Board connectors are designed to address the growing demands of the automotive market. These compact USCAR-T2V2 compatible connectors have a nominal current carrying capacity of 3A per contact to support higher power application as well.
-
PwrBlade® ConnectorThe PwrBlade® power distribution connector system from Amphenol includes power and signal contacts to provide power distribution and power control in a single connector. Options for either vertical or right-angle versions of PCB-mount headers and receptacles deliver support for coplanar, backplane or mezzanine connections.
控制器
ESS控制器用于高效管理储能系统中的电池模块,管理电池模块的充电和放电以及监测和控制ESS内部的环境温度。ESS控制器与BMS协同运行,共同收集和处理电压、电流和保险丝状态等数据。通过CAN总线,ESS控制器单元可以保持ESS的电池架与电源转换单元之间的相互通信。查看安费诺针对ESS控制器应用而推出的创新性连接器解决方案。
特色产品
-
Minitek MicroSpaceXS™ Waterproof 1.27mm Crimp-to-WireMinitek MicroSpaceXS™ Waterproof Crimp-to-Wire connector platform's unique design is compatible to LV214 Severity-3 and USCAR-T2V2 specifications.
-
Minitek MicroSpace™ 1.27mm Crimp-to-WireFCI Basics Minitek MicroSpace™ Crimp-to-Wire connector platform's unique design enables LV214 Severity-2 and performs at 1.8, 1.5 and 1.27mm pitch. Minitek MicroSpace™ will be available in single and double row versions, with top and side latch configuration.
-
WireLock®WireLock® is a 1.80mm pitch wire-to-board connector system. It's compact design addresses the growing need for space saving automotive-grade connectors.
-
FlexLock® 2.54mm FPC-to-BoardFlexLock®2.54mm FPC-to-Board connectors are designed to address the growing demands of the automotive market. These compact USCAR-T2V2 compatible connectors have a nominal current carrying capacity of 3A per contact to support higher power application as well.
